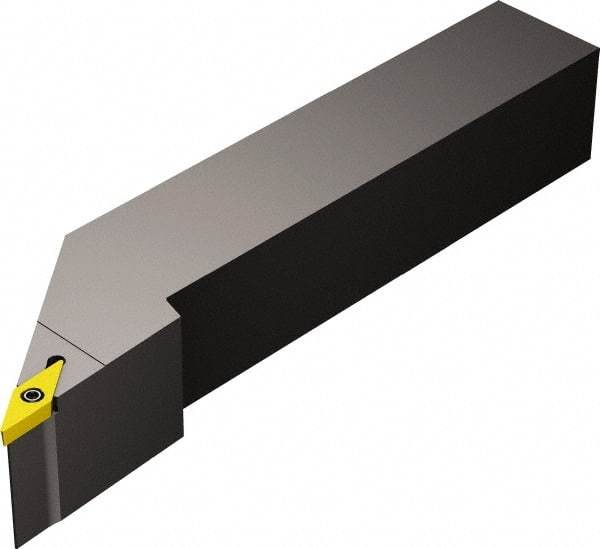

Sandvik Coromant - SVJBR/L, Right Hand Cut, -3° Lead Angle, 12mm Shank Height x 12mm Shank Width, Neutral Rake Indexable Turning Toolholder - 80mm OAL, VBMT 11 02 04, VBMT 2(1.5)1 Insert Compatibility, Series CoroTurn 107
Item #: 49650468
Brand: Sandvik Coromant
Model #: 5751850
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SVJBR/L |
| Rake | Neutral |
| Series | CoroTurn 107 |
| Lead Angle | -3 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Insert Compatibility | VBMT 11 02 04; VBMT 2(1.5)1 |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 80.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.1496 |
| Center to Cutting Edge (Decimal Inch) | 0.6299 |
| Head Length (mm) | 20.60 |
| Head Length (Decimal Inch) | 0.8110 |
| Toolholder Material | Steel |
