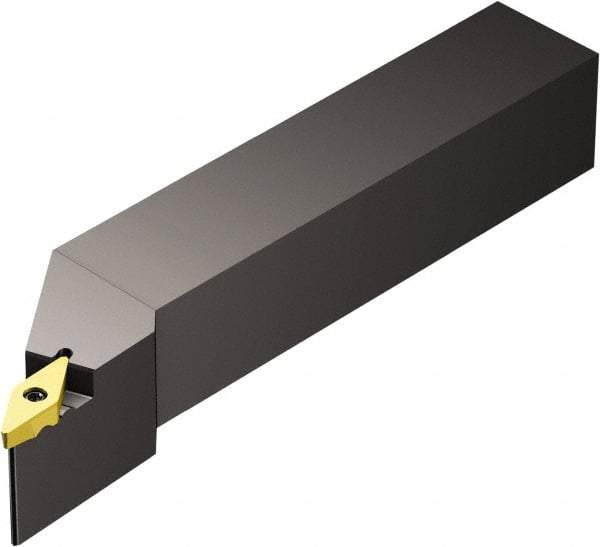

Sandvik Coromant - TR-V13JBR/L, Left Hand Cut, -3° Lead Angle, 32mm Shank Height x 25mm Shank Width, Neutral Rake Indexable Turning Toolholder - 170mm OAL, TR-VB1308 Insert Compatibility, Series CoroTurn TR
Item #: 49650088
Brand: Sandvik Coromant
Model #: 5755426
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | TR-V13JBR/L |
| Rake | Neutral |
| Series | CoroTurn TR |
| Lead Angle | -3 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | TR-VB1308 |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Center to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 40.90 |
| Head Length (Decimal Inch) | 1.6102 |
| Toolholder Material | Steel |
