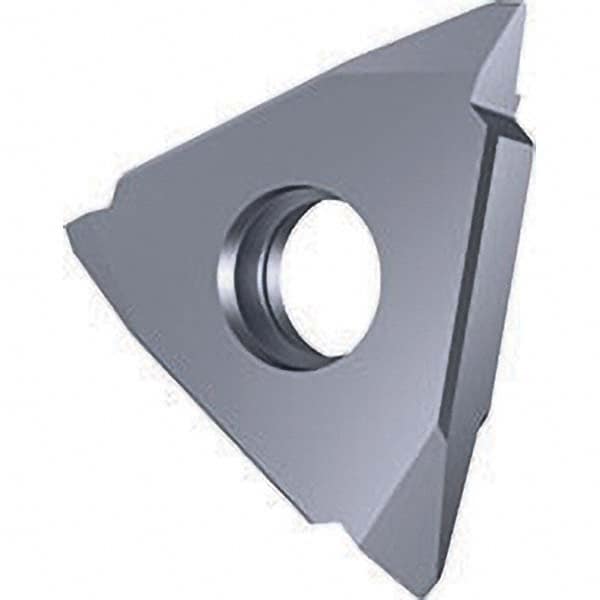

Guhring - Threading Inserts Insert Style: GG305 Insert Size: 04
Item #: 90271578
Brand: Guhring
Model #: 9256580120600
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications
Threading Inserts; Insert Style: GG305 ; Insert Size: 04 ; Thread Type: External ; Cutting Direction: Right Hand ; Insert Hand: Right Hand ; Thread Standard: Partial Profile 60 Degrees
| Insert Style | GG305 |
| Insert Size | 04 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | Partial Profile 60 Degrees |
| Material Grade | Carbide |
| External Pitch/TPI | 2.50 mm |
| Coating | Uncoated |
| Material | Carbide |
| Coating Process | Uncoated |
| Corner Radius (mm) | 0.36 |
| Thickness (mm) | 4.20 |
| Series | 25658 |
| Included Angle of Threading Tip | 60 |
| Maximum Depth of Cut (mm) | 1.65 |
| Shape | Triangle |
| Inscribed Circle (mm) | 12.00 |
| Through Coolant | Noncoolant Through |
