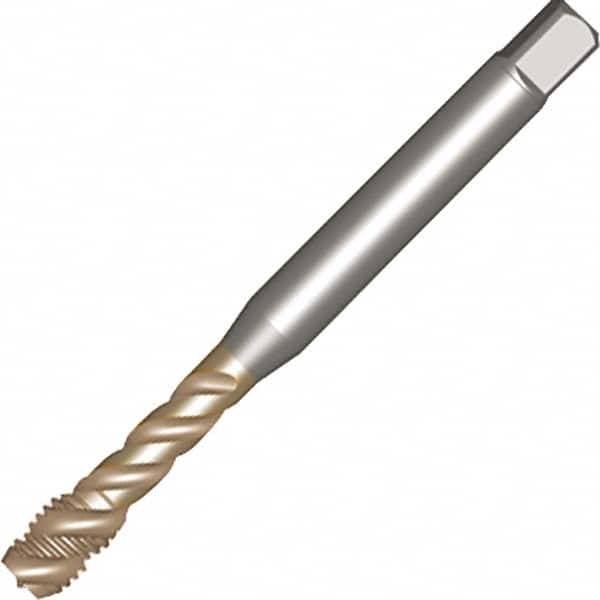

Sandvik Coromant - 3/4-16 UNF 4 Flute 2B Spiral Flute Tap - High Speed Steel, Fe Finish, 125mm OAL, Right Hand Thread, Series CoroTap 300
Item #: 49624638
Brand: Sandvik Coromant
Model #: 6539512
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 3/4-16 |
| Class of Fit | 2B |
| Number of Flutes | 4 |
| Material | High Speed Steel |
| Finish/Coating | Fe |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 4.9213 |
| Overall Length (mm) | 125.00 |
| Helix Angle | 45 |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 0.9843 |
| Thread Length (mm) | 25.00 |
| Series/List | CoroTap 300 |
| Tapping Depth (Decimal Inch) | 3.0512 |
| Tapping Depth (mm) | 78.00 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Shank Diameter (mm) | 14.00 |
| Material Application | Steel; Stainless Steel; Cast Iron |
