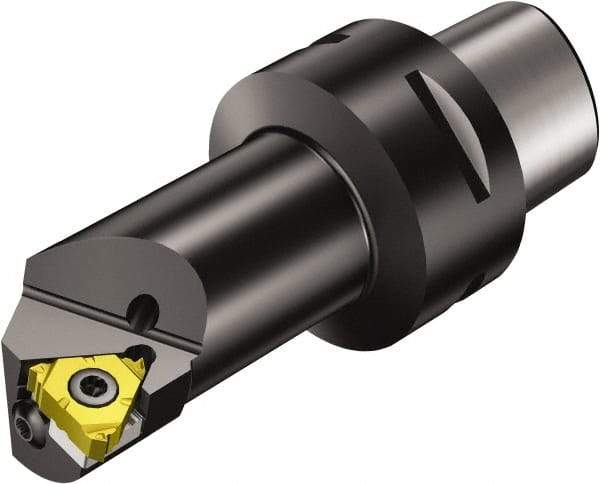

Sandvik Coromant - Insert Style 266.RL-22.., 90mm Head Length, Right Hand Cut, Internal/External Modular Threading Cutting Unit Head - System Size C5, 22mm Center to Cutting Edge, Series CoroThread 266
Item #: 49624224
Brand: Sandvik Coromant
Model #: 5910834
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | CoroThread 266 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Head Length/Projection (mm) | 90.00 |
| Head Length/Projection (Decimal Inch) | 3.5433 |
| Insert Style | 266.RL-22.. |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Neck Diameter (mm) | 32.00 |
| Neck Diameter (Decimal Inch) | 1.25984 |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| Maximum Hole Depth (mm) | 90.00 |
| Maximum Hole Depth (Decimal Inch) | 3.5433 |
