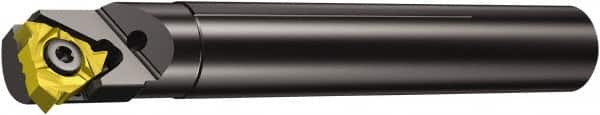

Sandvik Coromant - 25mm Min Bore Diam, 141mm OAL, 20mm Shank Diam, 254R/LKF-R Indexable Boring Bar - 254LG-22CC.. Insert
Item #: 49623762
Brand: Sandvik Coromant
Model #: 5961371
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | 254R/LKF-R |
| Series | CoroThread 266 |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9843 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 141.00 |
| Overall Length (Decimal Inch) | 5.5512 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | 254LG-22CC.. |
| Through Coolant | Yes |
| Rake | Negative |
| Neck Diameter (Decimal Inch) | 0.7874 |
| Lead Angle | 90 |
| Back of Bar to Cutting Edge (mm) | 141.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.5512 |
| Center to Cutting Edge (mm) | 15.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5906 |
| Rake Angle | -15 |
| Complete Insert Compatibility | 254LG-22CC.. |
| Toolholder Material | Steel |
