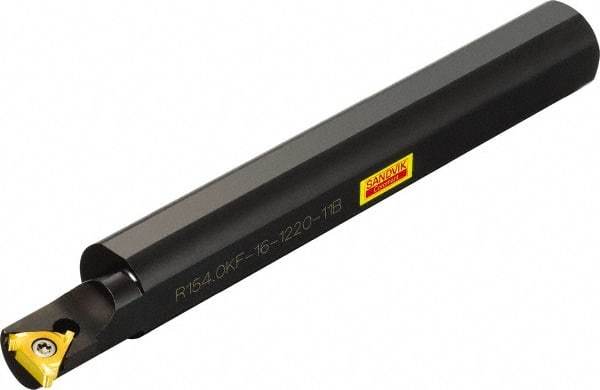

Sandvik Coromant - Left Hand Cut, 16mm Shank Width x 15mm Shank Height Indexable Threading Toolholder - 150mm OAL, L166.0L-11.. Insert Compatibility, R/L166.0KF..B Toolholder, Series T-Max U-Lock
Item #: 49623515
Brand: Sandvik Coromant
Model #: 5734432
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Height (mm) | 15.00 |
| Shank Height (Decimal Inch) | 0.5906 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Insert Compatibility | L166.0L-11.. |
| Series | T-Max U-Lock |
| Toolholder Style | R/L166.0KF..B |
| Through Coolant | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (mm) | 10.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4134 |
| Head Length (mm) | 48.00 |
| Head Length (Decimal Inch) | 1.8898 |
| Toolholder Material | Steel |
