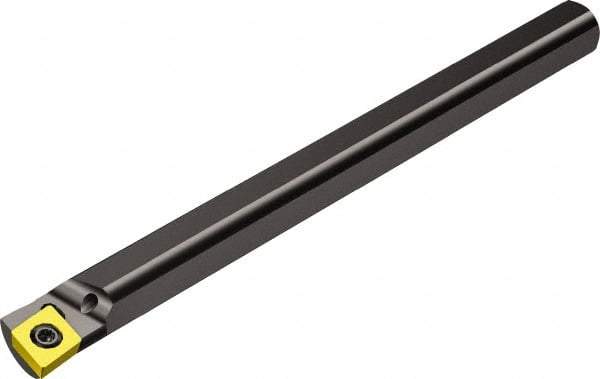

Sandvik Coromant - 32mm Min Bore Diam, 300mm OAL, 25mm Shank Diam, A..SCLCR/L Indexable Boring Bar - CCMT 432, CCMT 12 04 08 Insert, Screw or Clamp Holding Method
Item #: 49623093
Brand: Sandvik Coromant
Model #: 5722381
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A..SCLCR/L |
| Series | CoroTurn 107 |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | CCMT 432; CCMT 12 04 08 |
| Through Coolant | Yes |
| Insert Holding Method | Screw or Clamp |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 0.9843 |
| Lead Angle | -5 |
| Back of Bar to Cutting Edge (mm) | 300.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 11.8110 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Rake Angle | 0 |
| Complete Insert Compatibility | CCMT 432; CCMT 12 04 08 |
| Toolholder Material | Steel |
