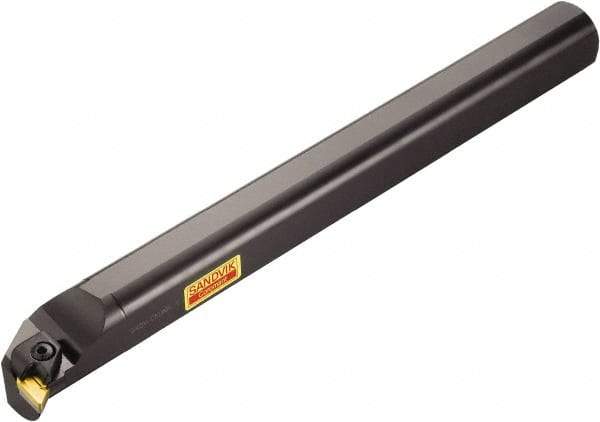

Sandvik Coromant - 44mm Min Bore Diam, 350mm OAL, 32mm Shank Diam, S..CKUNR/L Indexable Boring Bar - KNUX 16 04 05L Insert
Item #: 49622236
Brand: Sandvik Coromant
Model #: 5752250
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S..CKUNR/L |
| Series | T-Max |
| Minimum Bore Diameter (mm) | 44.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.7323 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 350.00 |
| Overall Length (Decimal Inch) | 13.7795 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | KNUX 16 04 05L |
| Through Coolant | No |
| Rake | Negative |
| Neck Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | -3 |
| Back of Bar to Cutting Edge (mm) | 350.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 13.7795 |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Rake Angle | -6 |
| Complete Insert Compatibility | KNUX 16 04 05L |
| Toolholder Material | Steel |
