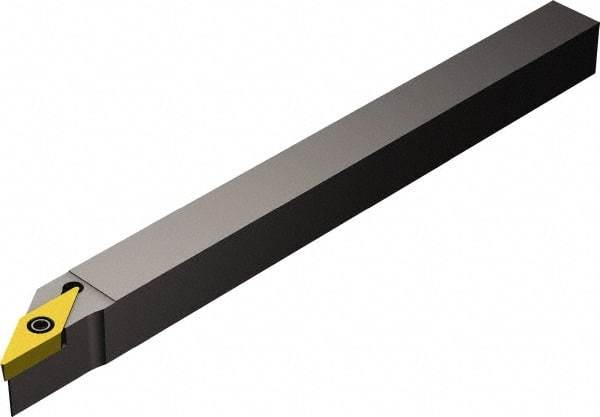

Sandvik Coromant - SVABR/L-S, Right Hand Cut, 0° Lead Angle, 16mm Shank Height x 16mm Shank Width, Neutral Rake Indexable Turning Toolholder - 125mm OAL, VBMT 16 04 08, VBMT 332 Insert Compatibility, Series CoroTurn 107
Item #: 49622111
Brand: Sandvik Coromant
Model #: 5751374
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SVABR/L-S |
| Rake | Neutral |
| Series | CoroTurn 107 |
| Lead Angle | 0 |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | VBMT 16 04 08; VBMT 332 |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (Decimal Inch) | 0.6299 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Toolholder Material | Steel |
