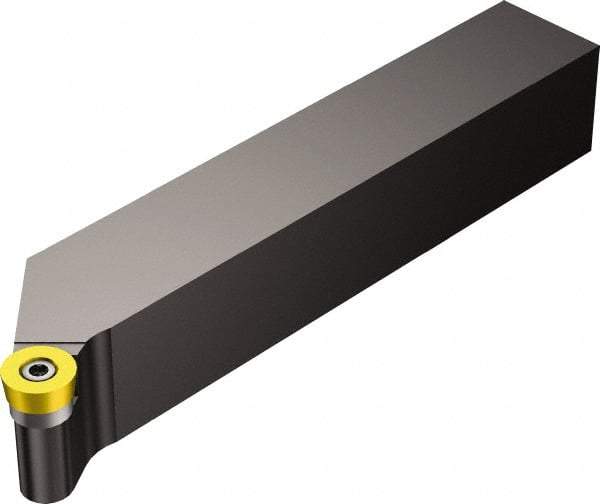

Sandvik Coromant - SRGCR/L, Left Hand Cut, 31.75mm Shank Height x 31.75mm Shank Width, Neutral Rake Indexable Turning Toolholder - 152.4mm OAL, RCMT 19 06 00, RCMT 64 Insert Compatibility, Series CoroTurn 107
Item #: 49620990
Brand: Sandvik Coromant
Model #: 5751444
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SRGCR/L |
| Rake | Neutral |
| Series | CoroTurn 107 |
| Shank Width (mm) | 31.75 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (mm) | 31.75 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | RCMT 19 06 00; RCMT 64 |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Center to Cutting Edge (Decimal Inch) | 1.5000 |
| Head Length (mm) | 31.75 |
| Head Length (Decimal Inch) | 1.2500 |
| Toolholder Material | Steel |
