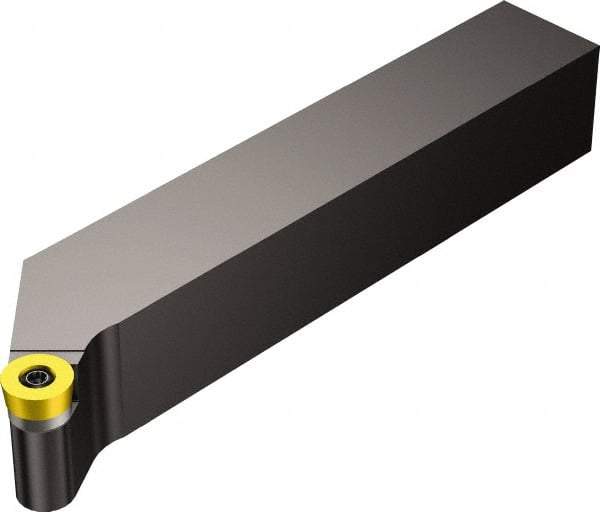

Sandvik Coromant - SRSCR/L, Right Hand Cut, 32mm Shank Height x 32mm Shank Width, Neutral Rake Indexable Turning Toolholder - 170mm OAL, RCMT 20 06 M0 Insert Compatibility, Series CoroTurn 107
Item #: 49620917
Brand: Sandvik Coromant
Model #: 5751200
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SRSCR/L |
| Rake | Neutral |
| Series | CoroTurn 107 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | RCMT 20 06 M0 |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Center to Cutting Edge (Decimal Inch) | 1.5748 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Toolholder Material | Steel |
