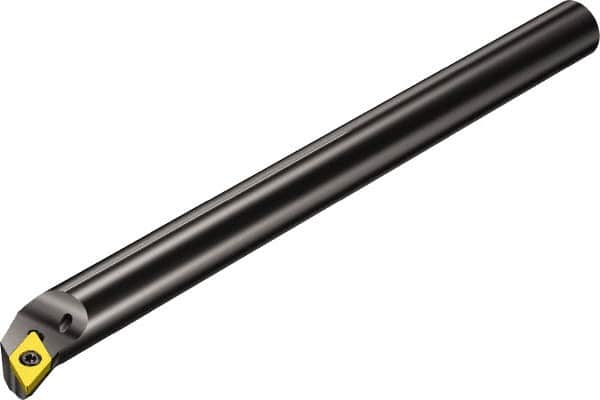

Sandvik Coromant - 20mm Min Bore Diam, 200mm OAL, 16mm Shank Diam, A..SDQCR/L -R Indexable Boring Bar - DCMT 2(1.5)1, DCMT 07 02 04 Insert, Screw or Clamp Holding Method
Item #: 49620792
Brand: Sandvik Coromant
Model #: 5721571
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A..SDQCR/L -R |
| Series | CoroTurn 107 |
| Minimum Bore Diameter (mm) | 20.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.7874 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Compatibility | DCMT 2(1.5)1; DCMT 07 02 04 |
| Through Coolant | Yes |
| Insert Holding Method | Screw or Clamp |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 0.6299 |
| Lead Angle | -17.5 |
| Back of Bar to Cutting Edge (mm) | 200.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 7.8740 |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Rake Angle | 0 |
| Complete Insert Compatibility | DCMT 2(1.5)1; DCMT 07 02 04 |
| Toolholder Material | Steel |
