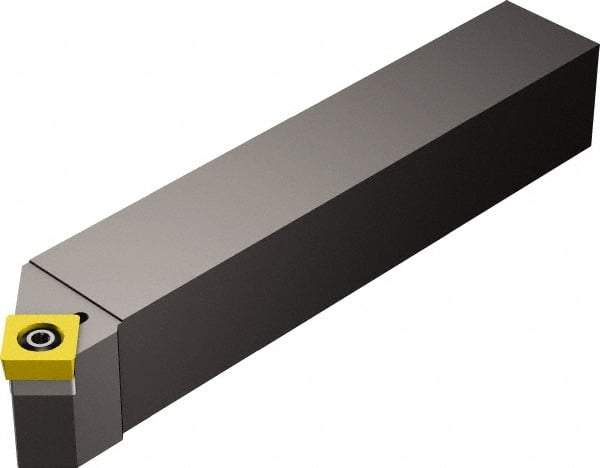

Sandvik Coromant - SSDCR/L, Right Hand Cut, 45° Lead Angle, 20mm Shank Height x 20mm Shank Width, Neutral Rake Indexable Turning Toolholder - 125.02mm OAL, SCMT 12 04 08, SCMT 432 Insert Compatibility, Series CoroTurn 107
Item #: 49620370
Brand: Sandvik Coromant
Model #: 5751107
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SSDCR/L |
| Rake | Neutral |
| Series | CoroTurn 107 |
| Lead Angle | 45 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.02 |
| Overall Length (Decimal Inch) | 4.9220 |
| Insert Compatibility | SCMT 12 04 08; SCMT 432 |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 116.70 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.5945 |
| Head Length (mm) | 13.90 |
| Head Length (Decimal Inch) | 0.5472 |
| Toolholder Material | Steel |
