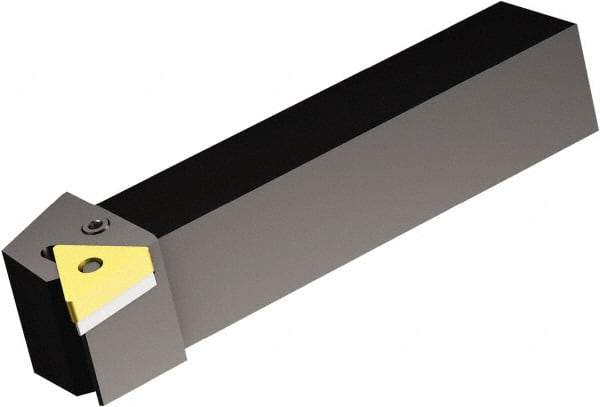

Sandvik Coromant - PTGNR/L, Right Hand Cut, -1° Lead Angle, 12mm Shank Height x 12mm Shank Width, Negative Rake Indexable Turning Toolholder - 125mm OAL, TNMG 11 03 04, TNMG 221 Insert Compatibility, Series T-Max P
Item #: 49620115
Brand: Sandvik Coromant
Model #: 5957925
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PTGNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | -1 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | TNMG 11 03 04; TNMG 221 |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (Decimal Inch) | 0.4724 |
| Head Length (mm) | 15.80 |
| Head Length (Decimal Inch) | 0.6220 |
| Toolholder Material | Steel |
