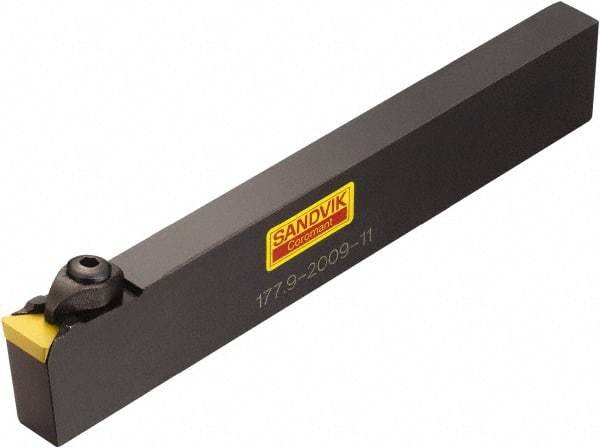

Sandvik Coromant - 177.9, Neutral Cut, 0° Lead Angle, 25mm Shank Height x 13mm Shank Width, Positive Rake Indexable Turning Toolholder - 180mm OAL, TPUN 16 03 08, TPU 322 Insert Compatibility, Series T-Max S
Item #: 49619596
Brand: Sandvik Coromant
Model #: 5757478
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | 177.9 |
| Rake | Positive |
| Series | T-Max S |
| Lead Angle | 0 |
| Shank Width (mm) | 13.00 |
| Shank Width (Decimal Inch) | 0.5118 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 180.00 |
| Overall Length (Decimal Inch) | 7.0866 |
| Insert Compatibility | TPUN 16 03 08; TPU 322 |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 180.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 7.0866 |
| Center to Cutting Edge (Decimal Inch) | 0.5551 |
| Head Length (mm) | 26.50 |
| Head Length (Decimal Inch) | 1.0433 |
| Toolholder Material | Steel |
