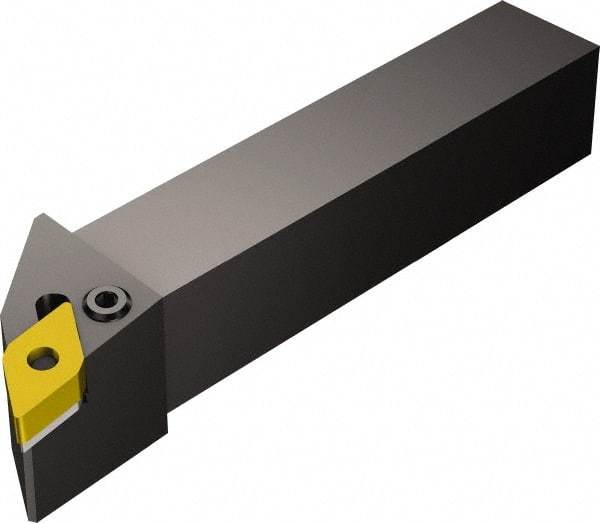

Sandvik Coromant - PDJNR/L, Left Hand Cut, -3° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, DNMG 11 04 08, DNMG 332 Insert Compatibility, Series T-Max P
Item #: 49616998
Brand: Sandvik Coromant
Model #: 5739610
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PDJNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | -3 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | DNMG 11 04 08; DNMG 332 |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 29.70 |
| Head Length (Decimal Inch) | 1.1693 |
| Toolholder Material | Steel |
