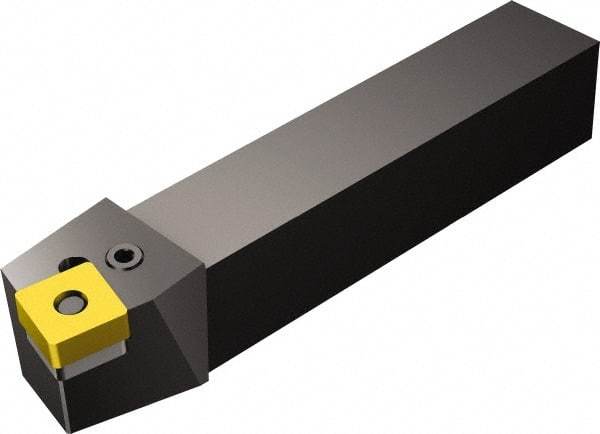

Sandvik Coromant - PSBNR/L, Left Hand Cut, 15° Lead Angle, 50mm Shank Height x 50mm Shank Width, Negative Rake Indexable Turning Toolholder - 300mm OAL, SNMG 25 07 24, SNMG 856 Insert Compatibility, Series T-Max P
Item #: 49616642
Brand: Sandvik Coromant
Model #: 5738897
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PSBNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 15 |
| Shank Width (mm) | 50.00 |
| Shank Width (Decimal Inch) | 1.9685 |
| Shank Height (mm) | 50.00 |
| Shank Height (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Insert Compatibility | SNMG 25 07 24; SNMG 856 |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 300.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 11.8110 |
| Center to Cutting Edge (Decimal Inch) | 1.6929 |
| Head Length (mm) | 47.50 |
| Head Length (Decimal Inch) | 1.8701 |
| Toolholder Material | Steel |
