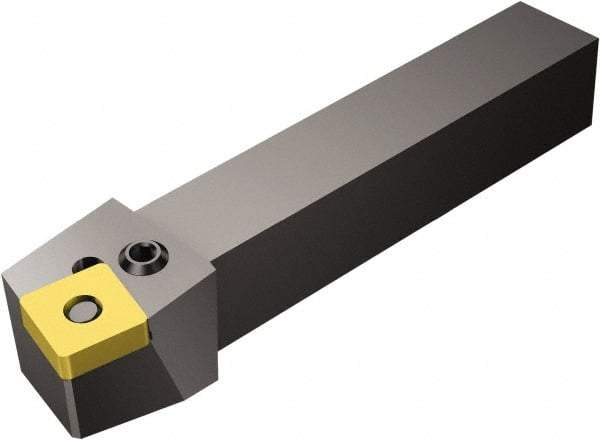

Sandvik Coromant - PSRNR/L, Right Hand Cut, 15° Lead Angle, 12mm Shank Height x 12mm Shank Width, Negative Rake Indexable Turning Toolholder - 80mm OAL, SNMG 09 03 08, SNMG 322 Insert Compatibility, Series T-Max P
Item #: 49616485
Brand: Sandvik Coromant
Model #: 5739791
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PSRNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 15 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Insert Compatibility | SNMG 09 03 08; SNMG 322 |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 80.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.1496 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Head Length (mm) | 21.00 |
| Head Length (Decimal Inch) | 0.8268 |
| Toolholder Material | Steel |
