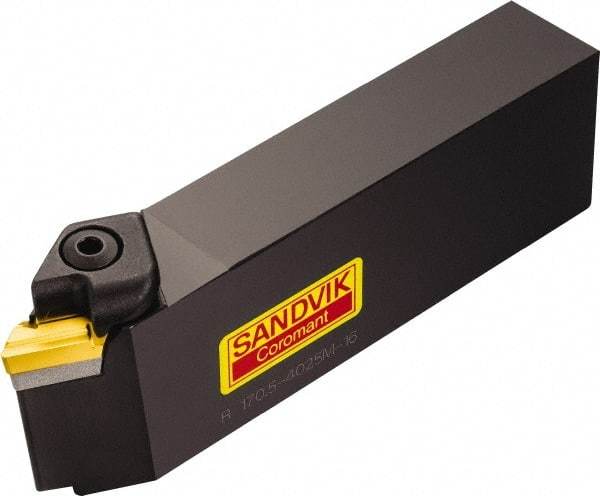

Sandvik Coromant - R/L170.5, Right Hand Cut, 30° Lead Angle, 40mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 145mm OAL, KNUX 16 04 05R Insert Compatibility, Series T-Max
Item #: 49615727
Brand: Sandvik Coromant
Model #: 5742473
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | R/L170.5 |
| Rake | Negative |
| Series | T-Max |
| Lead Angle | 30 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 145.00 |
| Overall Length (Decimal Inch) | 5.7087 |
| Insert Compatibility | KNUX 16 04 05R |
| Insert Holding Method | Top Clamping |
| Back of Bar to Cutting Edge (mm) | 145.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.7087 |
| Center to Cutting Edge (Decimal Inch) | 0.5630 |
| Head Length (mm) | 37.00 |
| Head Length (Decimal Inch) | 1.4567 |
| Toolholder Material | Steel |
