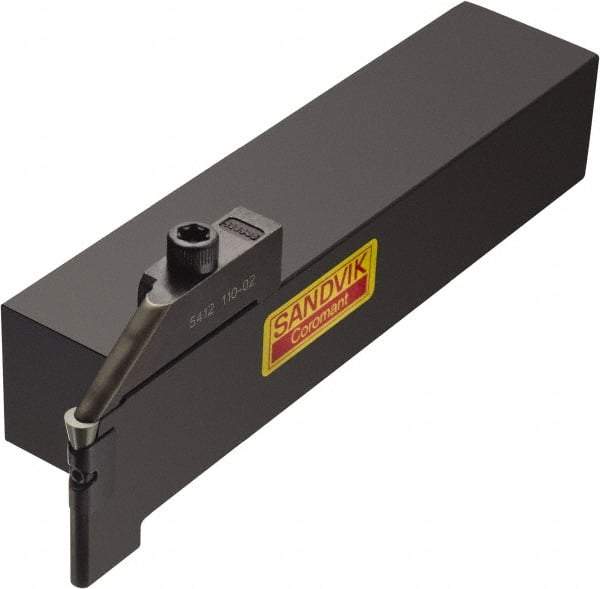

Sandvik Coromant - R/L176.9, Right Hand Cut, 32mm Shank Height x 36mm Shank Width, Neutral Rake Indexable Turning Toolholder - 170mm OAL, RCGX 06 06 00, RCGX 24 Insert Compatibility, Series T-Max
Item #: 49615701
Brand: Sandvik Coromant
Model #: 5742403
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | R/L176.9 |
| Rake | Neutral |
| Series | T-Max |
| Shank Width (mm) | 36.00 |
| Shank Width (Decimal Inch) | 1.4173 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | RCGX 06 06 00; RCGX 24 |
| Insert Holding Method | Top Clamping |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Center to Cutting Edge (Decimal Inch) | 1.4409 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Toolholder Material | Steel |
