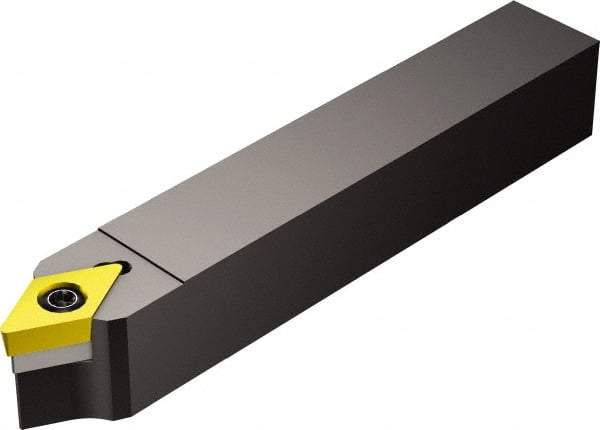

Sandvik Coromant - SDNCN, Neutral Cut, 27.5° Lead Angle, 25mm Shank Height x 25mm Shank Width, Neutral Rake Indexable Turning Toolholder - 150mm OAL, DCMT 11 T3 08, DCMT 3(2.5)2 Insert Compatibility, Series CoroTurn 107
Item #: 49615180
Brand: Sandvik Coromant
Model #: 5749551
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | SDNCN |
| Rake | Neutral |
| Series | CoroTurn 107 |
| Lead Angle | 27.5 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | DCMT 11 T3 08; DCMT 3(2.5)2 |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Head Length (mm) | 22.20 |
| Head Length (Decimal Inch) | 0.8740 |
| Toolholder Material | Steel |
