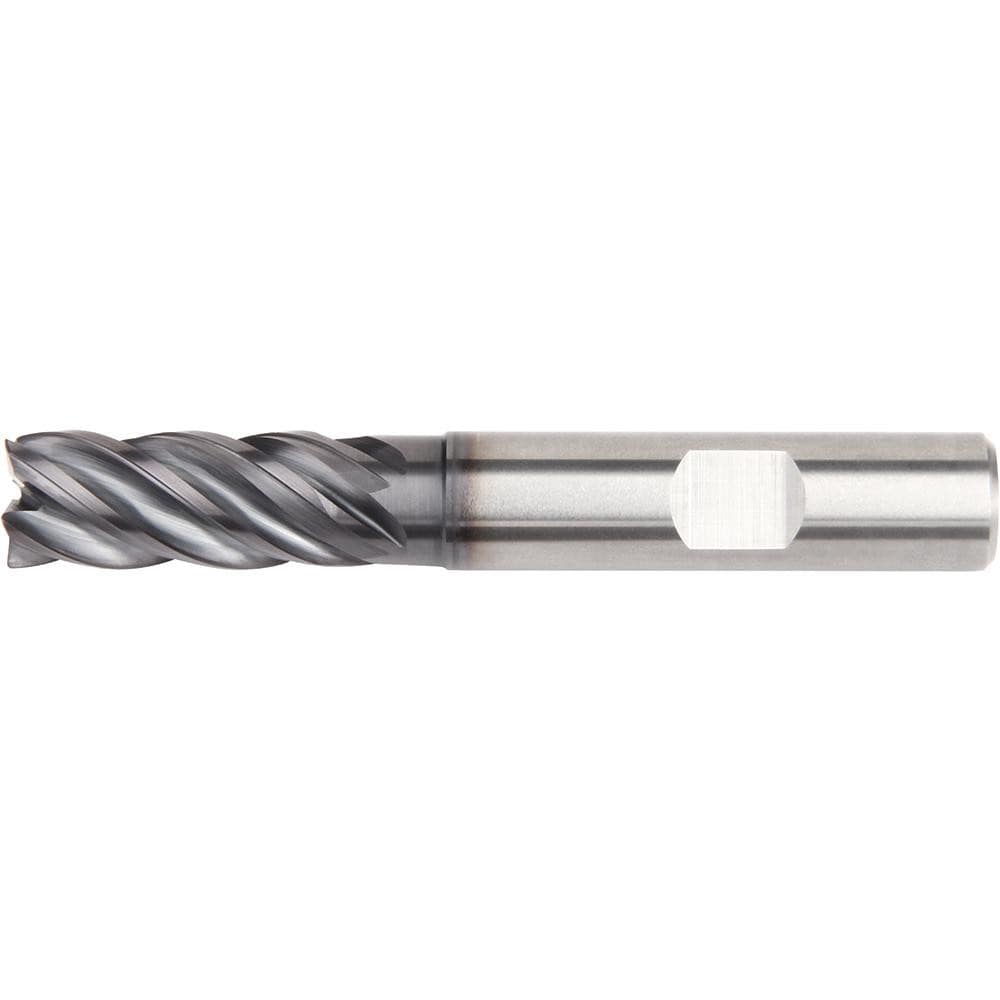

Square End Mill: 12.00 mm Dia, 26.00 mm LOC, 5 Flute, Solid Carbide
Item #: 34038638
Brand: Widia
Model #: 5599129
Product Specifications
| Mill Diameter (mm) | 12.00 |
| Mill Diameter (Decimal Inch) | 0.4724 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.0230 |
| Length of Cut (mm) | 26.00 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 83.00 |
| Overall Length (Decimal Inch) | 3.2670 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 38 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; S; H; M |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Coating/Finish | WS15PE |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Safe-Lock |
| Material Grade | WS15PE |
| Length Type | Regular |
| Neck Length (Decimal Inch) | 1.0230 |
| Neck Diameter (Decimal Inch) | 0.4724 |
| Neck Diameter (mm) | 11.28 |
| Reach Length (Decimal Inch) | 1.4173 |
| Reach Length (mm) | 36.00 |
| Series | 57NE |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
