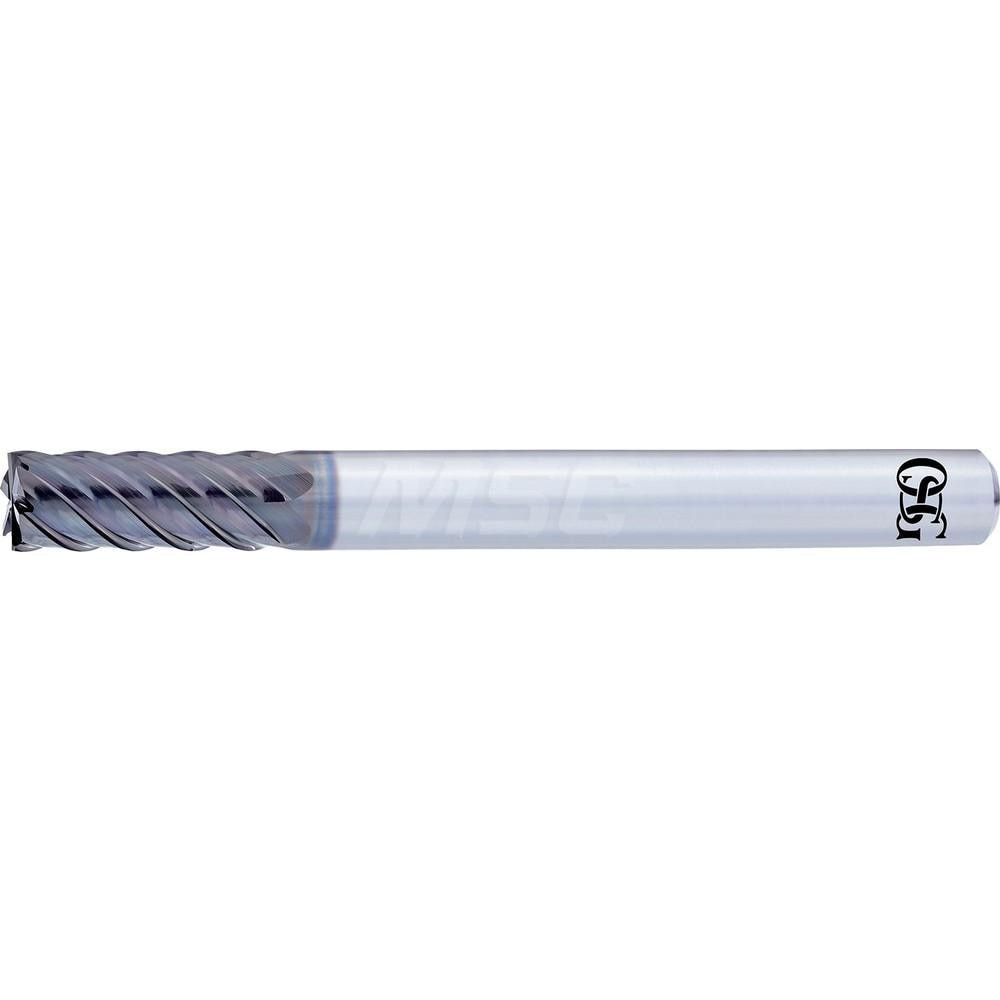

Square End Mill: 3/8" Dia, 15/16" LOC, 6 Flute, Solid Carbide
Item #: 20487682
Brand: OSG
Model #: 84401123
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Mill Diameter (Inch) | 3/8 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.9380 |
| Length of Cut (Inch) | 15/16 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Single Or Double End | Single |
| Coating/Finish Family | DUROREY |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 43 |
| Primary Workpiece Material | Hardened Materials |
| Primary Workpiece Material Code | H |
| Coating/Finish | DUROREY |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Series | 8440 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
