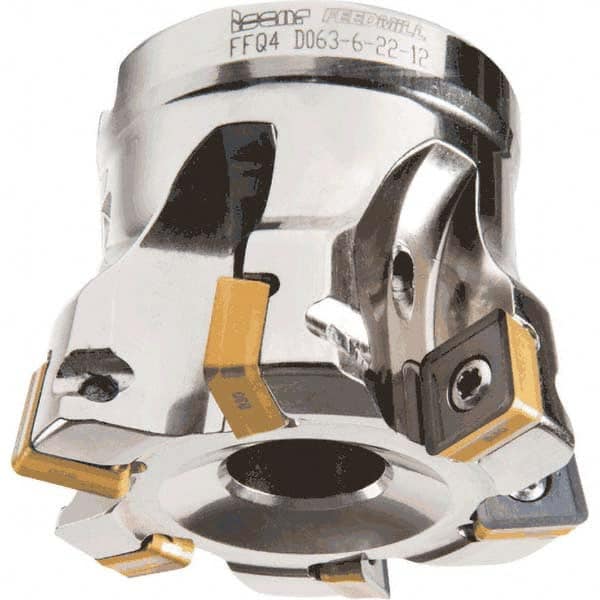

Iscar - Indexable High-Feed Face Mills Cutting Diameter (Decimal Inch): 3.07 Cutting Diameter (mm): 78
Item #: 46657110
Brand: Iscar
Model #: 3107340
Product Specifications
Indexable High-Feed Face Mills; Cutting Diameter (Decimal Inch): 3.07 ; Cutting Diameter (mm): 78 ; Maximum Depth of Cut (Decimal Inch): 0.059 ; Maximum Depth of Cut (mm): 1.5 ; Arbor Hole Diameter (Decimal Inch): 1.259 ; Arbor Hole Diameter (mm): 32
| Cutting Diameter (Decimal Inch) | 3.07 |
| Cutting Diameter (mm) | 78 |
| Maximum Depth of Cut (Decimal Inch) | 0.059 |
| Maximum Depth of Cut (mm) | 1.5 |
| Arbor Hole Diameter (Decimal Inch) | 1.259 |
| Arbor Hole Diameter (mm) | 32 |
| Overall Height (Decimal Inch) | 1.968 |
| Overall Height (mm) | 50 |
| Series | FFQ4 |
| Cutter Style | FFQ4 |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | FFQ4 |
| Insert Holding Method | Screw |
| Number of Flutes | 8 |
| Maximum Body Diameter (Decimal Inch) | 3.07 |
| Maximum Body Diameter (mm) | 78 |
| Through Coolant | Yes |
