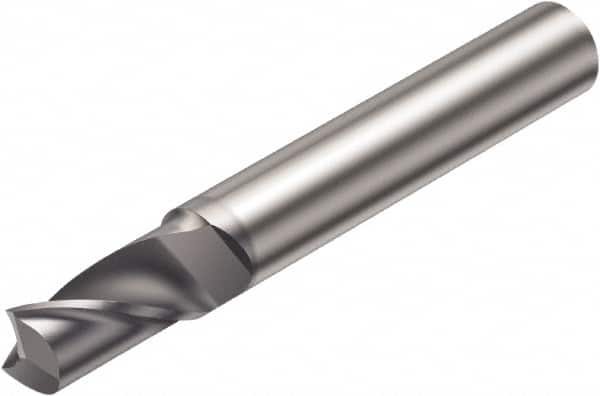

Sandvik Coromant - 3mm, 7mm LOC, 6mm Shank Diam, 57mm OAL, 1 Flute, Solid Carbide Square End Mill - TiCN Finish, 30° Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series CoroMill Plura
Item #: 49576127
Brand: Sandvik Coromant
Model #: 6260071
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 3.00 |
| Mill Diameter (Decimal Inch) | 0.1181 |
| Number of Flutes | 1 |
| Length of Cut (mm) | 7.00 |
| Length of Cut (Decimal Inch) | 0.2756 |
| Material | Solid Carbide |
| Finish/Coating | TiCN |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 57.00 |
| Overall Length (Decimal Inch) | 2.2441 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Manufacturer Grade | 1630 |
| Series/List | CoroMill Plura |
