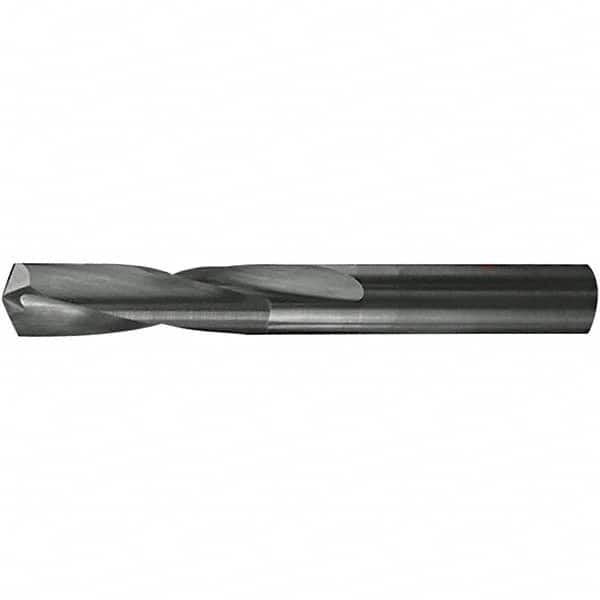

Chicago-Latrobe - #18 118° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 57648644
Brand: Chicago-Latrobe
Model #: 78657
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.1695 |
| Drill Bit Size (Wire) | #18 |
| Drill Point Angle | 118 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 19.05 |
| Flute Length (Decimal Inch) | 0.7500 |
| Overall Length (mm) | 53.98 |
| Overall Length (Decimal Inch) | 2.1250 |
| Point Type | Four Facet |
| Shank Diameter (mm) | 4.31 |
| Shank Diameter (Decimal Inch) | 0.1695 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 34.93 |
| Shank Length (Decimal Inch) | 1.3752 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0007 |
| Drill Tip Finish/Coating | None |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Material Grade | Submicron |
| Series/List | 759 |
| Length Type | Stub |
