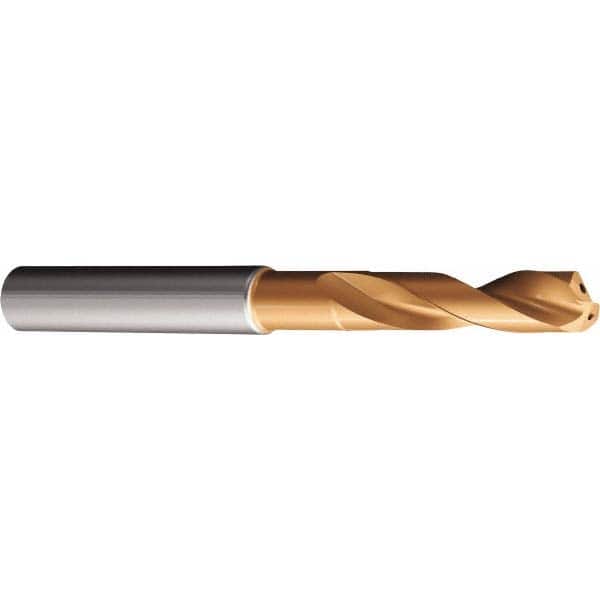

Screw Machine Length Drill Bit: 0.2189″ Dia, 140 °, Solid Carbide TiAlN Finish, Right Hand Cut, Straight-Cylindrical Shank, Series CoroDrill 860
Item #: 49572787
Brand: Sandvik Coromant
Model #: 6422686
Product Specifications
| Drill Bit Size (mm) | 5.56 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Drill Bit Size (Decimal Inch) | 0.2189 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Shank Diameter (mm) | 6.00 |
| Series | CoroDrill 860 |
| Maximum Drilling Depth (Decimal Inch) | 0.6929 |
| Maximum Drilling Depth (mm) | 17.60 |
| Drill Point Length (mm) | 0.90 |
| Drill Point Length (Decimal Inch) | 0.0354 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 1.1024 |
| Flute Length (mm) | 28.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Drill Bit Size Range (mm) | 5.00 to 6.50 |
