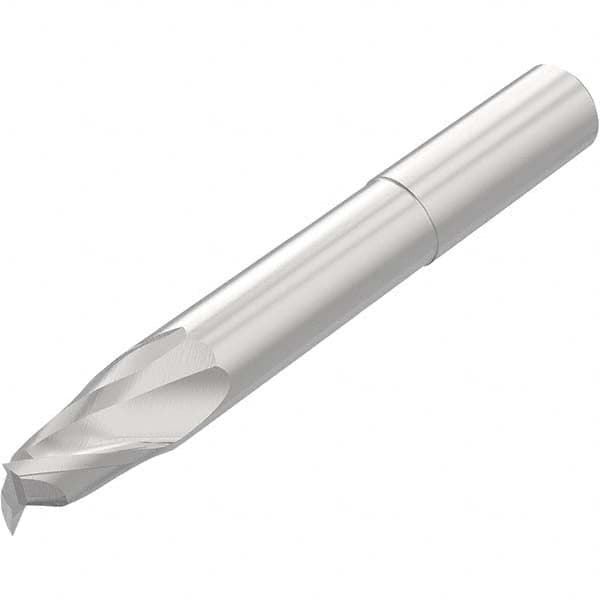

Niagara Cutter - 3/4", 1" LOC, 3/4" Shank Diam, 5-1/2" OAL, 2 Flute Solid Carbide Square End Mill
Item #: 96218029
Brand: Niagara Cutter
Model #: 03302612
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number of Flutes | 2 |
| Length of Cut (Inch) | 1 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 3/4 |
| Single or Double End | Single |
| Overall Length (Inch) | 5-1/2 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Variable Index | Yes |
| Flute Type | Helical |
| Length Type | Extra Long |
| Mill Diameter Tolerance (Decimal Inch) | +0.0020 |
| Neck Length (Decimal Inch) | 2.6250 |
| Reach Length (Inch) | 3-5/8 |
| Extended Reach | Yes |
| Series/List | AN230 |
