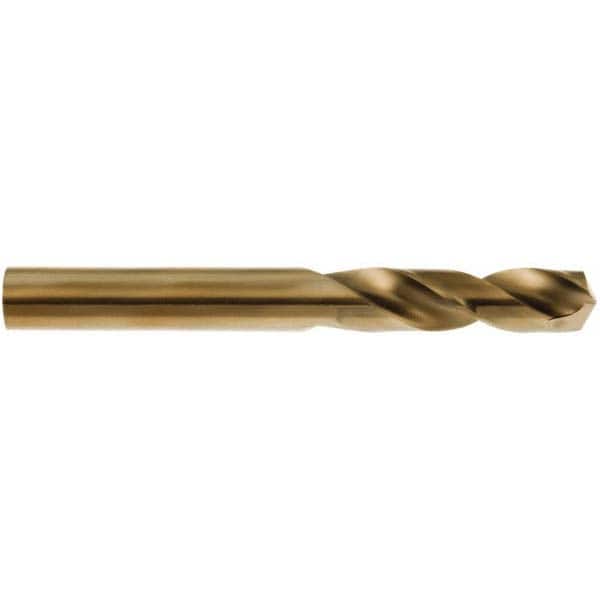

Hertel - 21/64" 135° Spiral Flute Cobalt Screw Machine Drill Bit
Item #: 43482017
Brand: Hertel
Model #:
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide/Gold provides a polished finish and prevents chip building, galling and welding on a workpiece. It is commonly used in several applications on low carbons, stainless steel and iron based ferrous metals.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3281 |
| Drill Bit Size (Inch) | 21/64 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide/Gold |
| Flute Type | Spiral |
| Flute Length (Inch) | 1-11/16 |
| Flute Length (mm) | 42.86 |
| Flute Length (Decimal Inch) | 1.6875 |
| Overall Length (Inch) | 2-15/16 |
| Overall Length (mm) | 74.61 |
| Overall Length (Decimal Inch) | 2.9375 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Split Point |
| Spiral Type | Regular Spiral |
| Material Grade | M35 |
