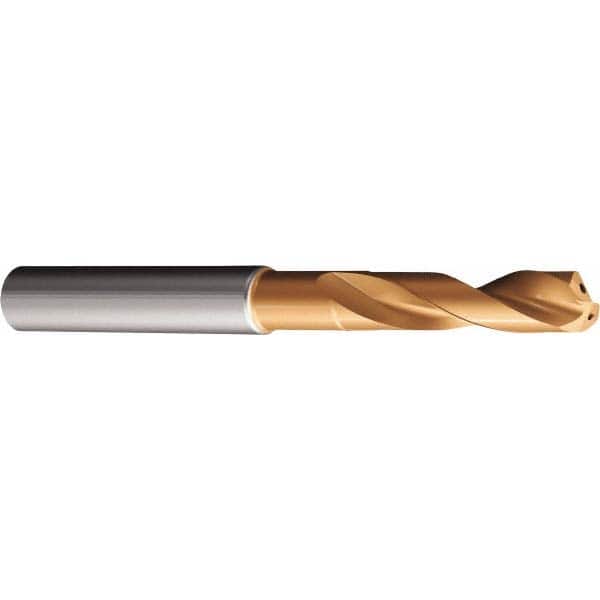

Sandvik Coromant - 5.16mm 140° Solid Carbide Screw Machine Drill Bit
Item #: 49568819
Brand: Sandvik Coromant
Model #: 6422680
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2032 |
| Drill Bit Size (mm) | 5.16 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 1.1024 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Maximum Drilling Depth (mm) | 16.30 |
| Maximum Drilling Depth (Decimal Inch) | 0.6417 |
| Number of Flutes | 2 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 0.80 |
| Drill Point Length (Decimal Inch) | 0.0315 |
| Through Coolant | Yes |
| Series/List | CoroDrill 860 |
