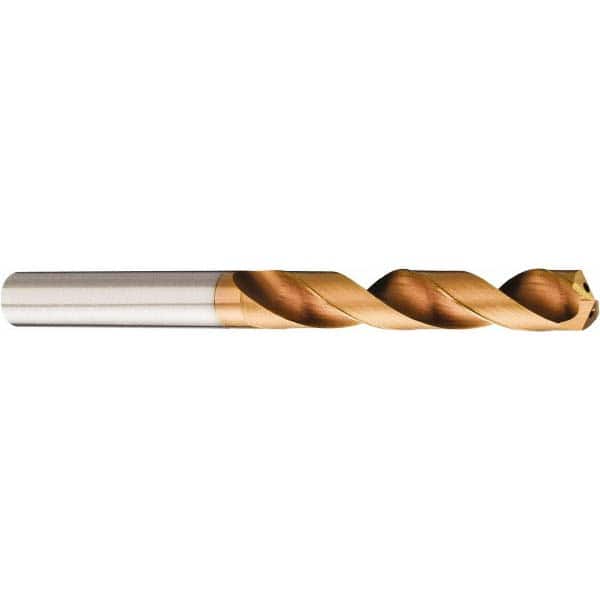

Jobber Length Drill Bit: 0.4764″ Dia, 140 °, Solid Carbide TiAlN Finish, 4.2126″ OAL, Right Hand Cut, Straight-Cylindrical Shank
Item #: 49571532
Brand: Sandvik Coromant
Model #: 5747523
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.4764 |
| Drill Bit Size (mm) | 12.10 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlN |
| Drill Point Angle (Degrees) | 140 |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Overall Length (mm) | 107.00 |
| Overall Length (Decimal Inch) | 4.2126 |
| Flute Length (mm) | 60.00 |
| Flute Length (Decimal Inch) | 2.3622 |
| Flute By Diameter Ratio | 3xD |
| Shank Diameter (mm) | 14.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.5118 |
| Maximum Drilling Depth (mm) | 38.40 |
| Drill Point Length (mm) | 2.10 |
| Drill Point Length (Decimal Inch) | 0.0827 |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Drill Bit Size Range (mm) | 10.00 - 12.50 |
