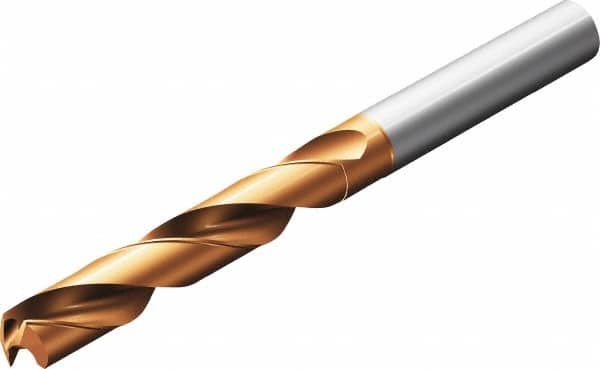

Screw Machine Length Drill Bit: 0.2677″ Dia, 147 °, Solid Carbide TiAlN Finish, Right Hand Cut, Straight-Cylindrical Shank, Series CoroDrill 860
Item #: 49571425
Brand: Sandvik Coromant
Model #: 6040008
Product Specifications
| Drill Bit Size (mm) | 6.80 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 147 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Drill Bit Size (Decimal Inch) | 0.2677 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Shank Diameter (mm) | 8.00 |
| Series | CoroDrill 860 |
| Maximum Drilling Depth (Decimal Inch) | 0.8465 |
| Maximum Drilling Depth (mm) | 21.50 |
| Drill Point Length (mm) | 1.10 |
| Drill Point Length (Decimal Inch) | 0.0433 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 1.3386 |
| Flute Length (mm) | 34.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Drill Bit Size Range (mm) | 6.50 to 8.00 |
