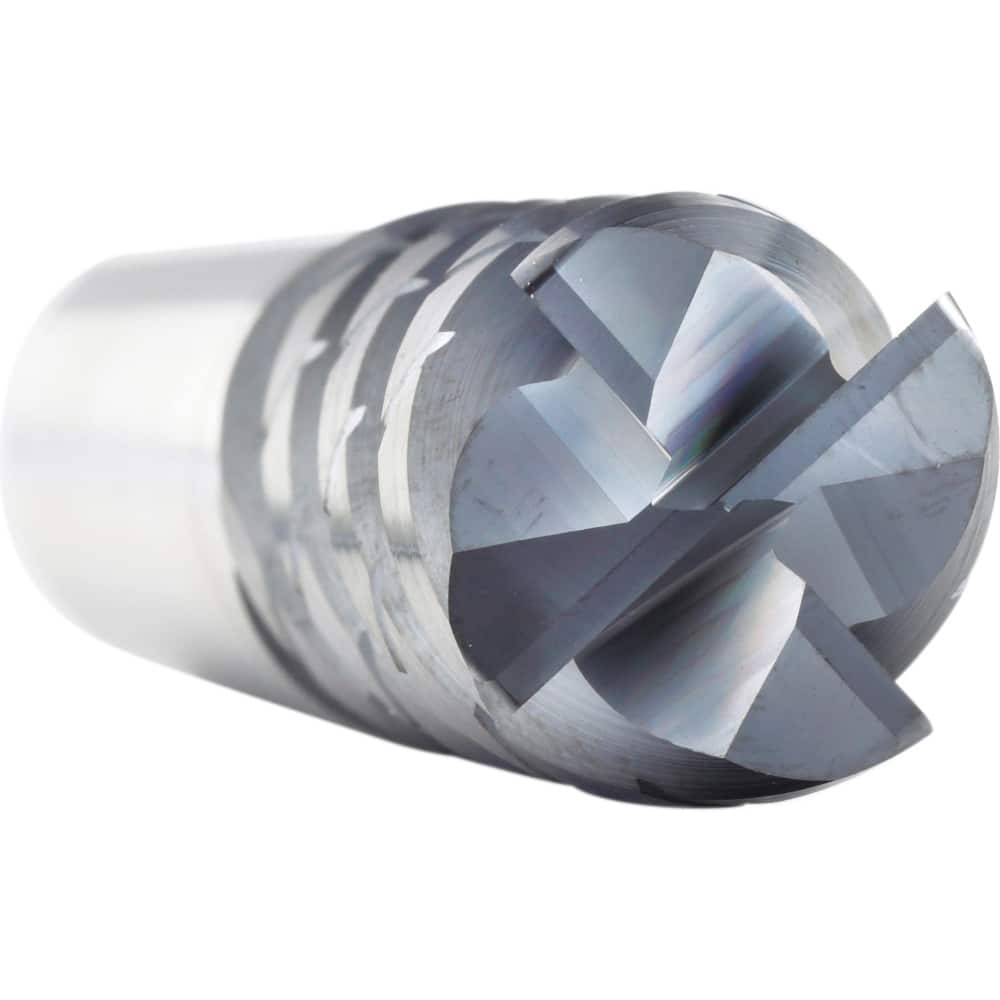

Supermill - Roughing & Finishing End Mills Mill Diameter (Inch): 5/8 Mill Diameter (Decimal Inch): 0.6250
Item #: 48182455
Brand: Supermill
Model #: SR4F625R
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
nACRo is a nanocomposite coating that is extremely wear and heat resistant. It is commonly used on steel, hardened steel, aluminum alloy and cast iron.
Product Specifications
Roughing & Finishing End Mills; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0300 ; Number of Flutes: 4 ; Material: Solid Carbide
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | nACRo |
| Length of Cut (Inch) | 1-5/8 |
| Length of Cut (Decimal Inch) | 1.6250 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 3-1/2 |
| Centercutting | Yes |
| Chipbreaker | Yes |
| Helix Angle | 50 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Series/List | SR4F |
