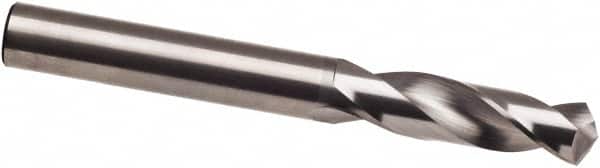

Guhring - #39 118° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 58580770
Brand: Guhring
Model #: 9007300025300
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.0995 |
| Drill Bit Size (Wire) | #39 |
| Drill Point Angle | 118 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 14.00 |
| Overall Length (mm) | 43.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Faceted |
| Shank Diameter (mm) | 2.53 |
| Shank Diameter (Decimal Inch) | 0.0996 |
| Specification Designation | DIN |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Web Thinning | Web-Thinning |
| Drill Bit Grade | General Purpose |
| Material Grade | Micrograin |
| Series/List | 730 |
