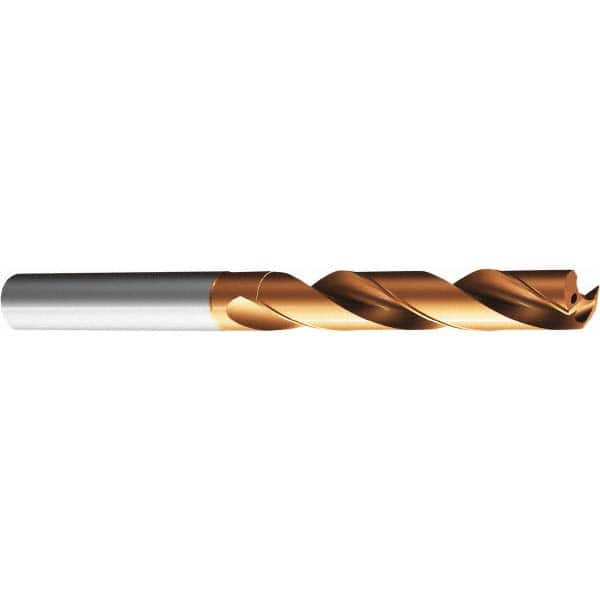

Screw Machine Length Drill Bit: 0.1457″ Dia, 147 °, Solid Carbide TiAlN Finish, Right Hand Cut, Straight-Cylindrical Shank, Series CoroDrill 860
Item #: 49562762
Brand: Sandvik Coromant
Model #: 6040093
Product Specifications
| Drill Bit Size (mm) | 3.70 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 147 |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Drill Bit Size (Decimal Inch) | 0.1457 |
| Overall Length (mm) | 62.00 |
| Overall Length (Decimal Inch) | 2.4409 |
| Shank Diameter (mm) | 6.00 |
| Series | CoroDrill 860 |
| Maximum Drilling Depth (Decimal Inch) | 0.4606 |
| Maximum Drilling Depth (mm) | 11.70 |
| Drill Point Length (mm) | 0.60 |
| Drill Point Length (Decimal Inch) | 0.0236 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 0.7874 |
| Flute Length (mm) | 20.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Drill Bit Size Range (mm) | 3.50 to 5.00 |
