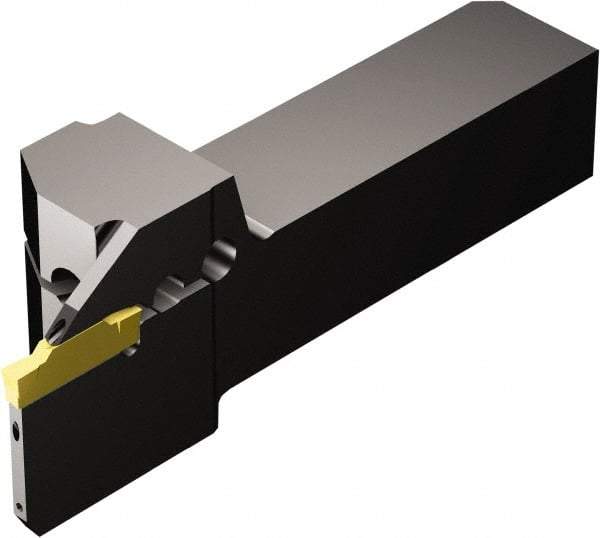

Sandvik Coromant - QS-R/LF123..C..F, Internal or External, Right Hand, 20mm Max Depth of Cut, Indexable Grooving Tool Holder - N123G2-0300-0003-TF Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 106.7mm OAL, Through Coolant
Item #: 49549272
Brand: Sandvik Coromant
Model #: 6537345
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Overall Length (mm) | 106.70 |
| Overall Length (Decimal Inch) | 4.2008 |
| Toolholder Style | QS-R/LF123..C..F |
| Insert Compatibility | N123G2-0300-0003-TF |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | CoroCut 1-2 |
| Through Coolant | Through Coolant |
| Insert Seat Size | G |
| Maximum Hole Depth (Decimal Inch) | 2.4685 |
| Maximum Bore Depth (Decimal Inch) | 2.4685 |
| igrvh Maximum Bore Depth (mm) | 62.70 |
| Maximum Workpiece Diameter (mm) | 40.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.5748 |
| Back of Bar to Cutting Edge (mm) | 106.70 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.2008 |
| Center to Cutting Edge (mm) | 20.50 |
| Center to Cutting Edge (Decimal Inch) | 0.8071 |
| Head Length (mm) | 62.70 |
| Head Length (Decimal Inch) | 2.4685 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123G2-0300-0003-TF |
