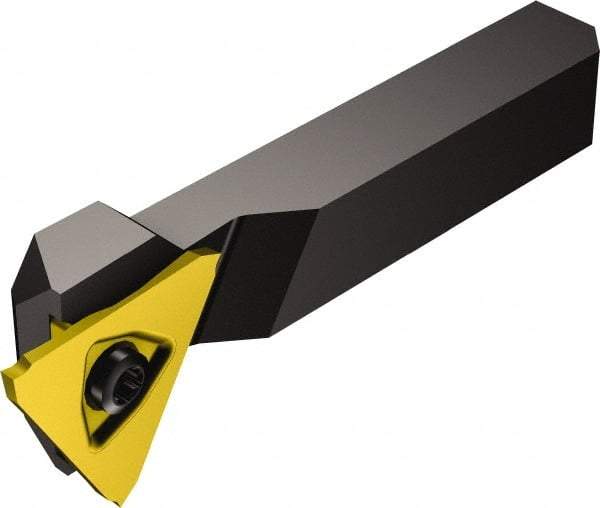

Sandvik Coromant - QS-R/LF123T/U..B, External, Left Hand, 6.35mm Max Depth of Cut, Indexable Grooving Tool Holder - N123U3-0150- CM Insert Compatibility, 15.88mm Shank Height, 15.88mm Shank Width, 69.85mm OAL
Item #: 49548845
Brand: Sandvik Coromant
Model #: 5962016
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 6.35 |
| Overall Length (mm) | 69.85 |
| Overall Length (Decimal Inch) | 2.7500 |
| Toolholder Style | QS-R/LF123T/U..B |
| Insert Compatibility | N123U3-0150- CM |
| Shank Height (mm) | 15.88 |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (mm) | 15.88 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Series | CoroCut 3 |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | U |
| Maximum Hole Depth (Decimal Inch) | 1.2480 |
| Maximum Bore Depth (Decimal Inch) | 1.2480 |
| igrvh Maximum Bore Depth (mm) | 31.70 |
| Back of Bar to Cutting Edge (mm) | 69.85 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7500 |
| Center to Cutting Edge (mm) | 15.88 |
| Center to Cutting Edge (Decimal Inch) | 0.6250 |
| Head Length (mm) | 31.70 |
| Head Length (Decimal Inch) | 1.2480 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123U3-0150- CM |
