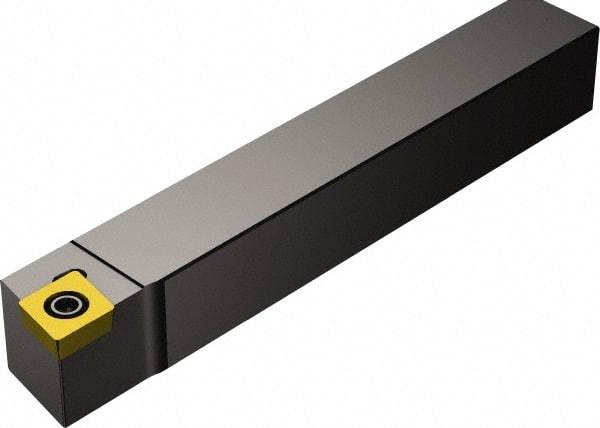

Sandvik Coromant - QS-SCACR/L, Right Hand Cut, 0° Lead Angle, 12mm Shank Height x 12mm Shank Width, Neutral Rake Indexable Turning Toolholder - 70mm OAL, CCMT 06 02 04, CCMT 2(1.5)1 Insert Compatibility, Series CoroTurn 107
Item #: 49548795
Brand: Sandvik Coromant
Model #: 5738129
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | QS-SCACR/L |
| Rake | Neutral |
| Series | CoroTurn 107 |
| Lead Angle | 0 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Insert Compatibility | CCMT 06 02 04; CCMT 2(1.5)1 |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 70.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| Center to Cutting Edge (Decimal Inch) | 0.4724 |
| Head Length (mm) | 12.00 |
| Head Length (Decimal Inch) | 0.4724 |
| Toolholder Material | Steel |
