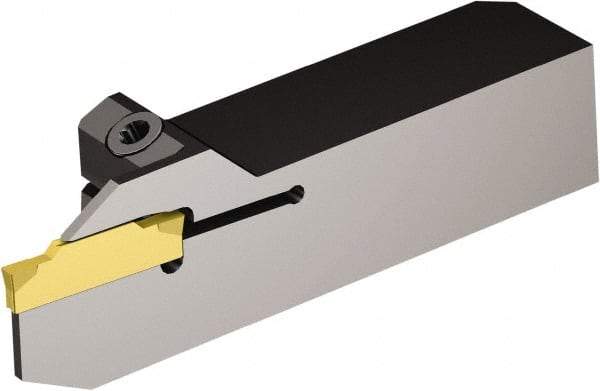

Sandvik Coromant - QS-R/LF123..B, Internal or External, Right Hand, 9.91mm Max Depth of Cut, Indexable Grooving Tool Holder - N123F2-0250-0002-CM Insert Compatibility, 9.53mm Shank Height, 9.53mm Shank Width, 70mm OAL
Item #: 49548720
Brand: Sandvik Coromant
Model #: 5926277
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3900 |
| Maximum Depth of Cut (mm) | 9.91 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Toolholder Style | QS-R/LF123..B |
| Insert Compatibility | N123F2-0250-0002-CM |
| Shank Height (mm) | 9.53 |
| Shank Height (Decimal Inch) | 0.3750 |
| Shank Width/Diameter (mm) | 9.53 |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Series | CoroCut 1-2 |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | F |
| Maximum Hole Depth (Decimal Inch) | 0.8467 |
| Maximum Bore Depth (Decimal Inch) | 0.8467 |
| igrvh Maximum Bore Depth (mm) | 21.51 |
| Maximum Workpiece Diameter (mm) | 19.81 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.7800 |
| Back of Bar to Cutting Edge (mm) | 70.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| Center to Cutting Edge (mm) | 9.53 |
| Center to Cutting Edge (Decimal Inch) | 0.3750 |
| Head Length (mm) | 21.51 |
| Head Length (Decimal Inch) | 0.8467 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123F2-0250-0002-CM |
