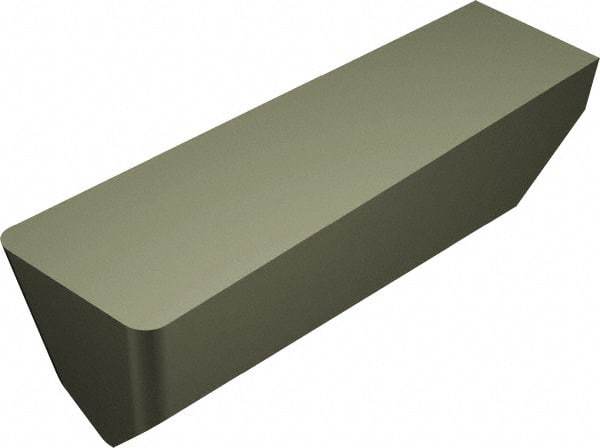

Sandvik Coromant - 8312CSG T Grade 670, 7.92mm Cutting Width Ceramic Grooving Insert - Neutral, Uncoated
Item #: 49548605
Brand: Sandvik Coromant
Model #: 5757149
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | CSG |
| Insert Size | 8312 |
| Material | Ceramic |
| Cutting Width (mm) | 7.92 |
| Cutting Width (Decimal Inch) | 0.3120 |
| Manufacturer's Grade | 670 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 8.56 |
| Cutting Height (Decimal Inch) | 0.3370 |
| Relief Angle | 11 |
| Insert Seat Size | 4 |
| Chipbreaker | T |
| Overall Length (mm) | 25.40 |
| Series | T-Max |
| ISO Number | 150.23 0794 08T01020670 |
| Insert Thickness (Decimal Inch) | 0.3370 |
