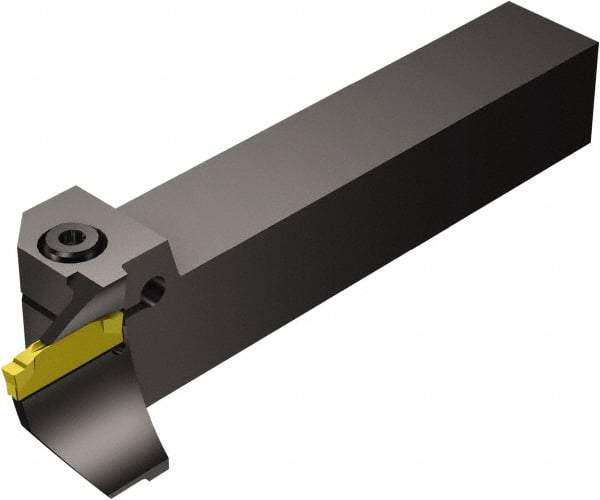

Sandvik Coromant - R/LF123..B..B, External, Right Hand, 22mm Max Depth of Cut, Indexable Grooving Tool Holder - N123G2-0300-0003-TF Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 49547268
Brand: Sandvik Coromant
Model #: 5740817
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8661 |
| Maximum Depth of Cut (mm) | 22.00 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | R/LF123..B..B |
| Insert Compatibility | N123G2-0300-0003-TF |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | CoroCut 1-2 |
| Through Coolant | Non Coolant Through |
| Insert Seat Size | G |
| Maximum Hole Depth (Decimal Inch) | 1.6929 |
| Maximum Bore Depth (Decimal Inch) | 1.6929 |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (mm) | 26.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0236 |
| Head Height (Decimal Inch) | 0.9843 |
| Head Height (mm) | 25.00 |
| Head Length (mm) | 43.00 |
| Head Length (Decimal Inch) | 1.6929 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123G2-0300-0003-TF |
