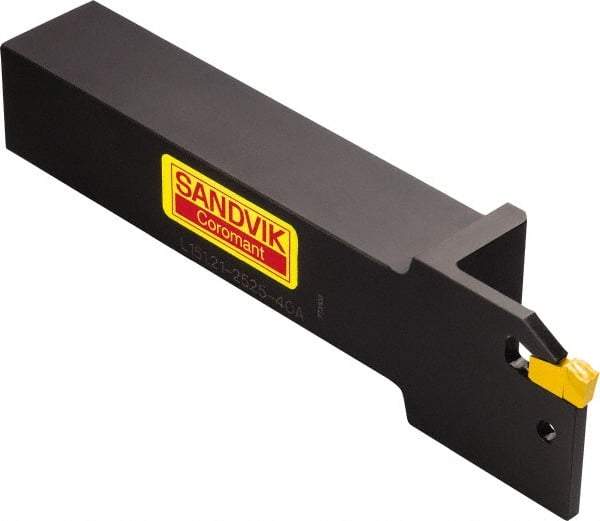

Sandvik Coromant - R/L151.21, Internal, Right Hand, 25mm Max Depth of Cut, Indexable Grooving Tool Holder - N151.2-300- 5E Insert Compatibility, 32mm Shank Height, 25mm Shank Width, 170mm OAL
Item #: 49547110
Brand: Sandvik Coromant
Model #: 5741770
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 25.00 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Toolholder Style | R/L151.21 |
| Insert Compatibility | N151.2-300- 5E |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | T-Max Q-Cut |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | 30 |
| Maximum Hole Depth (Decimal Inch) | 1.2441 |
| Maximum Bore Depth (Decimal Inch) | 1.2441 |
| igrvh Maximum Bore Depth (mm) | 31.60 |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Center to Cutting Edge (mm) | 25.30 |
| Center to Cutting Edge (Decimal Inch) | 0.9961 |
| Head Length (mm) | 31.60 |
| Head Length (Decimal Inch) | 1.2441 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N151.2-300- 5E |
