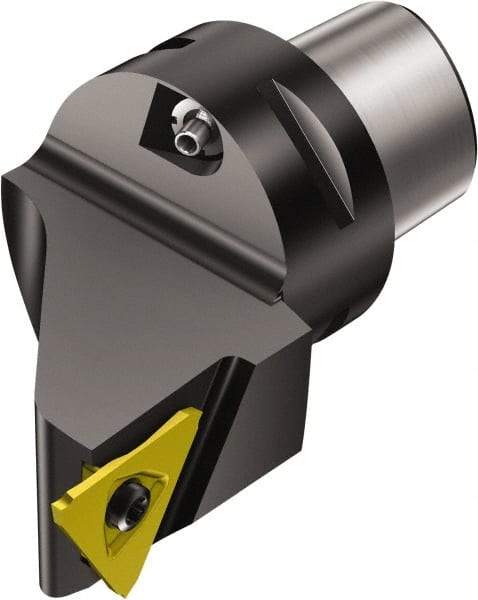

Sandvik Coromant - N123U3-0150- CM Insert, 45mm Head Length, Modular Grooving Cutting Unit Head - Left Hand Cut, System Size C3, Through Coolant, Series Corocut 3 Cutting Unit for Parting & Grooving
Item #: 49545643
Brand: Sandvik Coromant
Model #: 5726872
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C3 |
| Series Name | Corocut 3 Cutting Unit for parting and Grooving |
| Cutting Direction | Left Hand |
| Insert Style | N123U3-0150- CM |
| Head Length/Projection (mm) | 45.00 |
| Head Length/Projection (Decimal Inch) | 1.7716 |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Complete Insert Compatibility | N123U3-0150- CM |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
