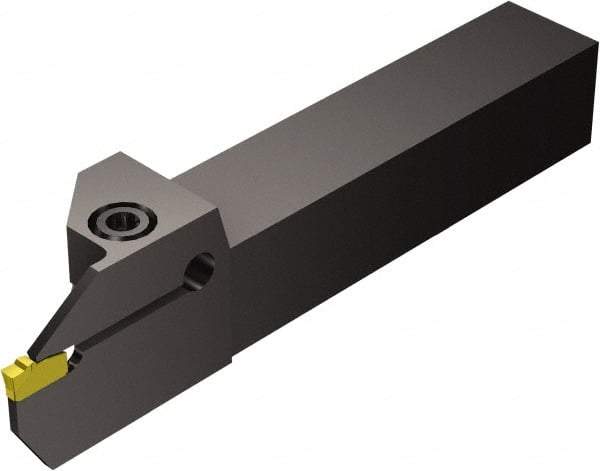

Sandvik Coromant - R/LF151.23, Internal, Left Hand, 32mm Max Depth of Cut, Indexable Grooving Tool Holder - N151.2-500- 5E Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 49545361
Brand: Sandvik Coromant
Model #: 5733951
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 32.00 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | R/LF151.23 |
| Insert Compatibility | N151.2-500- 5E |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | T-Max Q-Cut |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | 50 |
| Maximum Hole Depth (Decimal Inch) | 2.2441 |
| Maximum Bore Depth (Decimal Inch) | 2.2441 |
| igrvh Maximum Bore Depth (mm) | 57.00 |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (mm) | 26.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0236 |
| Head Length (mm) | 57.00 |
| Head Length (Decimal Inch) | 2.2441 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N151.2-500- 5E |
