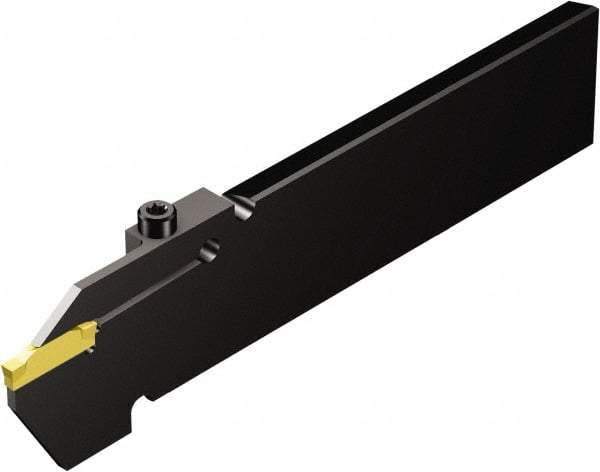

Sandvik Coromant - 1.2559" Blade Height, 0.3248" Blade Width, 5.9055" OAL, Right Hand Cut, Single End Indexable Cut-Off Blade - 25mm Max Depth of Cut, R/LF123..B1 (C) Blade, CoroCut 1-2 Series
Item #: 49545015
Brand: Sandvik Coromant
Model #: 5740873
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Blade Height (mm) | 31.90 |
| Blade Height (Decimal Inch) | 1.2559 |
| Blade Width (mm) | 8.25 |
| Blade Width (Decimal Inch) | 0.3248 |
| Blade Overall Length (mm) | 150.00 |
| Blade Overall Length (Decimal Inch) | 5.9055 |
| Blade Style | R/LF123..B1 (C) |
| Insert Style | N123E2-0200-0002-CM |
| Series | CoroCut 1-2 |
| Insert Seat Size | E |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Complete Insert Compatibility | N123E2-0200-0002-CM |
| Includes | Clamping screw; Key |
