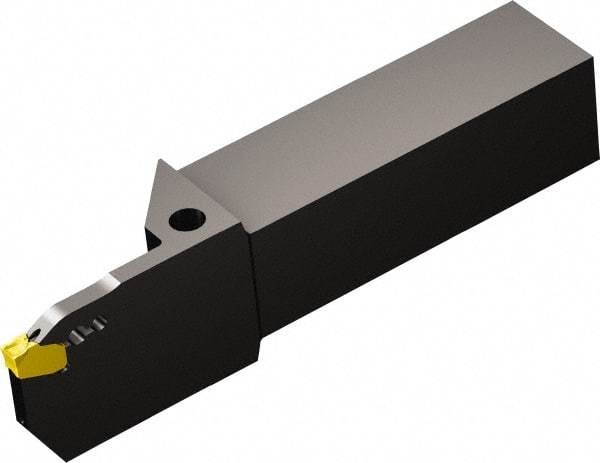

Sandvik Coromant - QD-R/LF..C..A, External, Left Hand, 33.02mm Max Depth of Cut, Indexable Grooving Tool Holder - QD-NJ-0500-0002-CM Insert Compatibility, 31.75mm Shank Height, 31.75mm Shank Width, 177.8mm OAL, Through Coolant
Item #: 49544976
Brand: Sandvik Coromant
Model #: 6427592
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.3000 |
| Maximum Depth of Cut (mm) | 33.02 |
| Overall Length (mm) | 177.80 |
| Overall Length (Decimal Inch) | 7.0000 |
| Toolholder Style | QD-R/LF..C..A |
| Insert Compatibility | QD-NJ-0500-0002-CM |
| Shank Height (mm) | 31.75 |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (mm) | 31.75 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Series | CoroCut QD |
| Through Coolant | Through Coolant |
| Insert Seat Size | J |
| Maximum Hole Depth (Decimal Inch) | 2.1654 |
| Maximum Bore Depth (Decimal Inch) | 2.1654 |
| igrvh Maximum Bore Depth (mm) | 55.00 |
| Back of Bar to Cutting Edge (mm) | 177.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 7.0000 |
| Center to Cutting Edge (mm) | 33.00 |
| Center to Cutting Edge (Decimal Inch) | 1.2992 |
| Head Length (mm) | 55.00 |
| Head Length (Decimal Inch) | 2.1654 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | QD-NJ-0500-0002-CM |
