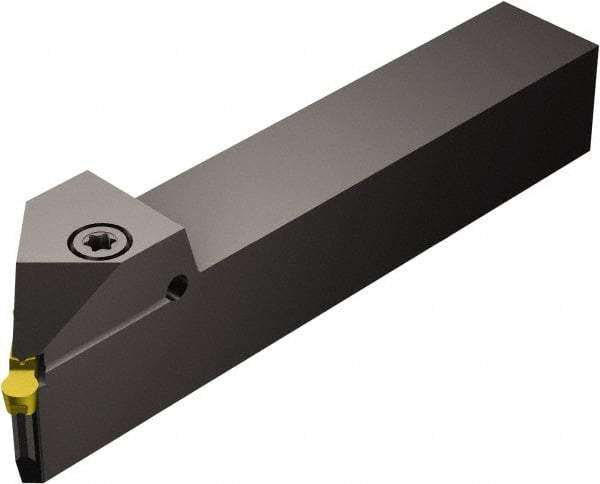

Sandvik Coromant - N123J2-0500-0004-TF, R/LX123..B-045 Left Hand Indexable Profiling Toolholder - 25mm Shank Height x 25mm Shank Width, 150mm Long, Steel
Item #: 49544786
Brand: Sandvik Coromant
Model #: 5734851
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Rake | Neutral |
| Insert Compatibility | N123J2-0500-0004-TF |
| Toolholder Style | R/LX123..B-045 |
| Series | CoroCut 1-2 |
| Toolholder Material | Steel |
| Through Coolant | No |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Center to Cutting Edge (mm) | 30.00 |
| Center to Cutting Edge (Decimal Inch) | 1.1811 |
| Head Length (mm) | 44.90 |
| Head Length (Decimal Inch) | 1.7677 |
| Maximum Hole Depth (Decimal Inch) | 0.1969 |
| Maximum Hole Depth (mm) | 5.00 |
| Complete Insert Compatibility | N123J2-0500-0004-TF |
