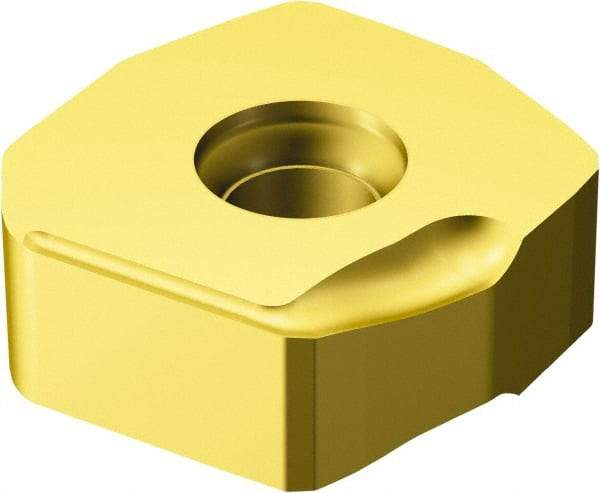

Sandvik Coromant - N3651505 KW8 Grade K20W Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 5.66mm Thick, 15mm Inscribed Circle
Item #: 49544224
Brand: Sandvik Coromant
Model #: 5739006
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N365 |
| Insert Size | 1505 |
| Material | Carbide |
| Manufacturer's Grade | K20W |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 15.00 |
| Inscribed Circle (Decimal Inch) | 0.5906 |
| Thickness (mm) | 5.66 |
| Thickness (Decimal Inch) | 0.2228 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Relief Angle | 0.000 |
| Rake Angle | 20 |
| Rake | Positive |
| Coating Process | CVD |
| Insert Hand | Neutral |
| Chipbreaker | KW8 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Chamfered and Rounded |
| ISO Number | N365-1505ZNE-KW8 K20W |
