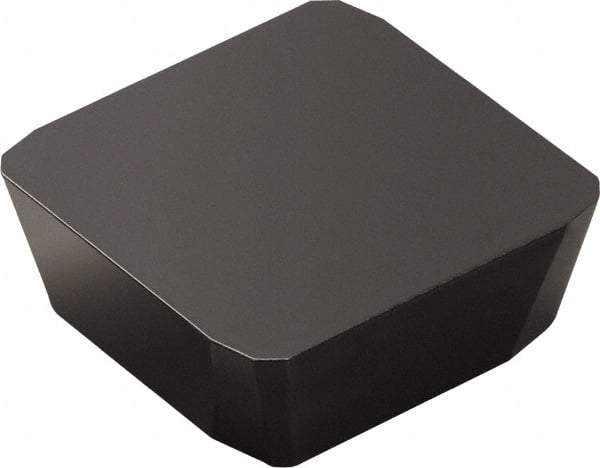

Sandvik Coromant - SMK53 Grade 3020 Carbide Milling Insert - TiCN/Al2O3 Finish, 4.76mm Thick, 15.88mm Inscribed Circle
Item #: 49543655
Brand: Sandvik Coromant
Model #: 5751224
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SMK |
| Insert Size | 53 |
| Material | Carbide |
| Manufacturer's Grade | 3020 |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1875 |
| Relief Angle | 11.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutting Edge Style | Rounded |
| ISO Number | SPKN 15 04 ED L 3020 |
